Twislights

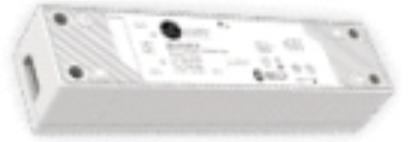

Dimensions (LXWXH) 123mm X 37mm X 22mm

https://twislights.com/wp-content/uploads/2025/07/sc-320x98.png

Dimensions (LXWXH) 145mm x 35mm x 25mm

https://twislights.com/wp-content/uploads/2025/07/19-320x85.jpg

Dimensions (LXWXH) 103.5mm X 67.5mm X 30mm

https://twislights.com/wp-content/uploads/2025/07/sc2-320x211.png

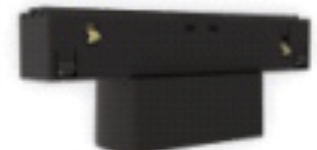

UWC CASAMBI TRACK LIGHT DRIVER:1CH+2CH

MAGNETIC TRACK DRIVERS FEATURES
1	Output Type	Constant Current
2	Dimming Type	PWM
3	Dimming Range	0.5% – 100%
4	Dimensions	122.5mm x 14mm x 10mm

INPUT
5	Operating Input Voltage	24Vdc – 48Vdc
6	Rated Input Voltage	48Vdc
7	Standby Power Consumption	< 0.5W

OUTPUT
8	Output Current	150mA – 700mA (Customised)
9	Output Voltage	For Vin = 48V → 22V – 42V

OUTPUT TYPE
10	Output Power	Max 30W
11	Constant Current Accuracy	+/-3%
12	Full Load Output Power	Max 30W
13	Efficiency	>90% @ 36V
14	Number of Output Channels	1CH and 2CH (select profile)

EVIRONMENT & PROTECTION
15	IP Grade	IP20
16	Insulation Class	Class 2
17	Storage Temperature	5°C to 45°C
18	Ambient Operating Temp.	5°C to 45°C
19	Max Case Temperature	75°C

SMART LIGHTING DRIVERS CASAMBI
MODEL NO	WATTAGE	CURRENT	VOLTAGE
CCD-15-350-1-CSB	6-15W-1CH-CSB	(200, 250, 300, 350)mA	(30-42)Vdc
CCD-15-350-2-CSB	6-15W-2CH-CSB	(200, 250, 300, 350)mA	(30-42)Vdc
CCD-24-600-1-CSB	6W-24W-1CH CSB	(300, 400, 500, 600)mA	(9-18)Vdc
CCD-24-600-2-CSB	6W-24W-2CH CSB	(300, 400, 500, 600)mA	(9-18)Vdc
CCD-40-1000-1-CSB	24W-40W-ACDC 1CH	(700, 800, 900, 1000)mA	(30-40)Vdc
CCD-40-1000-2-CSB	24W-40W-ACDC 2CH	(700, 800, 900, 1000)mA	(30-40)Vdc

ACCESSORIES	PRODUCT	PRODUCT CODE
SMART IN-TRACK DRIVER		TL SMART TRACK CSB
SMART DALI CONTROLLER		TL DALI CONTROLLER CSB
SMART RELAY		TL RELAT CSB
IR BLASTER		TL IR BLASTER CSB
FREEDOM SWITCH		TL CSB SWITCH- T125585 (GREY/BLACK/WHITE)
SMART KNOB REMOTE CONTROL		TL CSB ROTARY KEYPAD (LG/TG/BS/BC LIGHT GOLD, TITANIUM GOLD, BRUSHED SS, BRIGHT CHROMIUM)
CURTAIN CONTROLLER – Er2508		TL CSB CURTAIN CONTROLLER
KINETIC SWITCH FOR CURTAIN CONTROLLER AND RELAY		TL CSB KINETIC SWITCH T128495 Dimensions 98mm x 44mm x 31mm
KINETIC SWITCH FOR CURTAIN CONTROLLER AND RELAY		TL CSB KINETIC SWITCH T128496 Dimensions 98mm x 44mm x 31mm
